Ford Maverick Grabber specifications by year

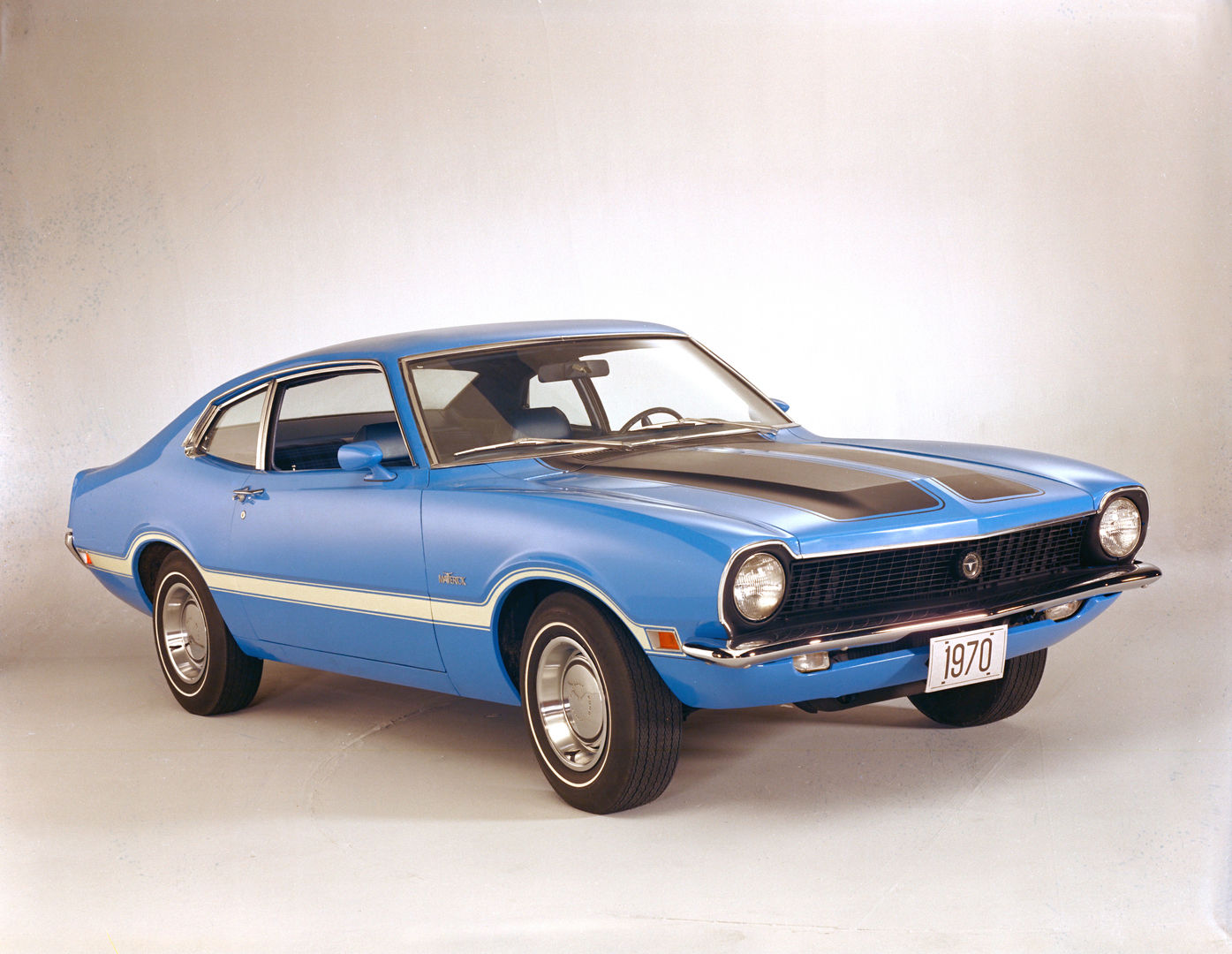

1970

Measure	Value	Applies to
Curb weight, 2-door	2,501 lb	2-door (base)
Wheelbase	103 in	2-door
Axle ratio	2.83 (170, 3-speed); 3.08 (170, automatic; 200, 3-speed; all with air conditioning); 2.83 (200, SelectShift)	by engine and transmission

1971

Measure	Value	Applies to
Curb weight, Grabber	2,679 lb	Grabber 2-door
Curb weight, 2-door	2,624 lb	2-door
Axle ratio, 302 V8	2.79 ratio	302 with 3-speed or SelectShift; 3.00 with air conditioning

1972

Measure	Value	Applies to
Curb weight, Grabber	2,736 lb	Grabber 2-door
Curb weight, 2-door	2,681 lb	2-door

1973

Measure	Value	Applies to
Curb weight, Grabber	2,812 lb	Grabber 2-door
Curb weight, 2-door	2,757 lb	2-door

1974

Measure	Value	Applies to
Curb weight, Grabber	2,900 lb	Grabber 2-door
Curb weight, 2-door	2,968 lb	2-door (as printed, heavier than the Grabber)

1975

Measure	Value	Applies to
Curb weight, Grabber	2,957 lb	Grabber 2-door
Curb weight, 2-door	2,915 lb	2-door

1976

Measure	Value	Applies to
Curb weight, 2-door	2,929 lb	2-door

1977

Measure	Value	Applies to
Wheelbase	103 in	2-door sedan
Wheelbase	109.9 in	4-door sedan
Length	187 in	2-door sedan
Length	193.9 in	4-door sedan
Height	53.5 in	2-door sedan
Height	53.4 in	4-door sedan
Width	70.5 in	2-door sedan
Width	70.5 in	4-door sedan
Tread, front/rear (one figure printed)	56.5 in	2-door sedan
Tread, front/rear (one figure printed)	56.5 in	4-door sedan
Trunk space, standard spare tire	11.3 cu ft	2-door sedan
Trunk space, with Space-Saver spare	12.1 cu ft	2-door sedan
Trunk space, standard spare tire	13.1 cu ft	4-door sedan
Trunk space, with Space-Saver spare	13.9 cu ft	4-door sedan
Fuel capacity	19.2 gal	2-door sedan
Fuel capacity	19.2 gal	4-door sedan
Curb weight	2,909 lb	2-door sedan
Curb weight	3,011 lb	4-door sedan
Passenger capacity	4 passengers	2-door sedan
Passenger capacity	5 passengers	4-door sedan
Standard engine	200 CID 1V 6-cylinder with DuraSpark Ignition (not available in California)	2-door and 4-door sedan
Standard transmission	3-speed, fully synchronized manual, column-mounted shift	2-door and 4-door sedan
Standard steering	recirculating-ball type	2-door and 4-door sedan
Standard tires	bias-ply, 14 in, black sidewall (BSW)	2-door and 4-door sedan

Each year's heading links to that model year's full fact sheet. Specification labels are carried as recorded and not normalized across years, so the same measure may be worded differently from one year to the next.
