Dodge Dart GTS, Swinger and Demon specifications by year

Independent · Source-led · American performance history Issue 01 · 1951–2023

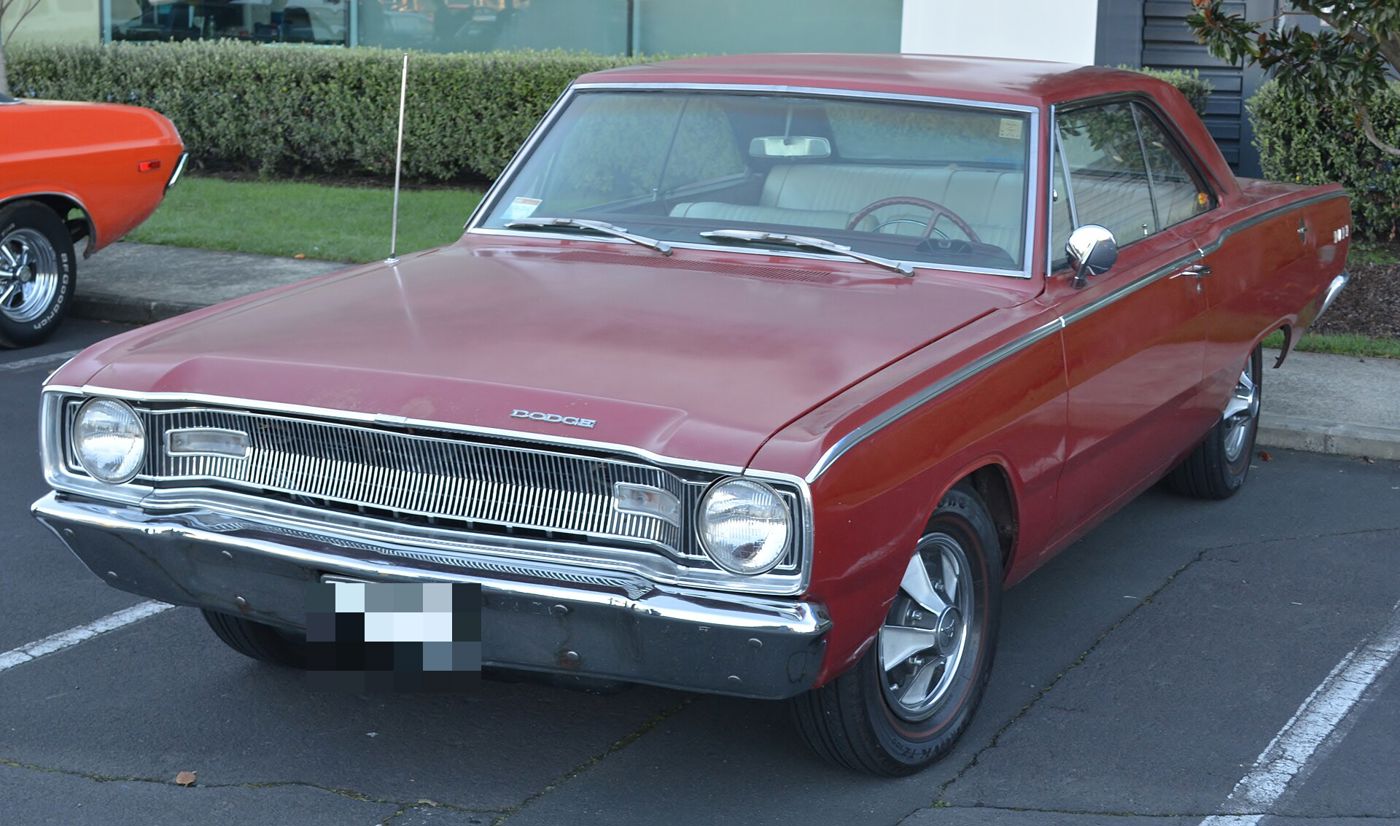

Red 1967 Dodge Dart two-door hardtop from the front three-quarter, with its wide horizontal grille — 1967 Dodge Dart hardtop in red, the first year of the body that carried the GTS Photo: GPS 56 from New Zealand, CC BY 2.0, via Wikimedia Commons

1967

Measure	Value	Applies to
Wheelbase	111 in	all Darts
Overall length	195.4 in	as printed
Overall width	69.7 in	as printed
Tread, front / rear	57.4 / 55.6 in	as printed
Tires, V8	7.00 x 13; optional 6.95 x 14 or D70 x 14 (GT with HD suspension)	V8 cars
Rear axle ratio	273 four-speed 3.23:1 (3.55, 3.91 optional); 383 3.23:1	as listed
Shipping weight, GT hardtop V8	2,930 lb	CL2P 23
Shipping weight, GT convertible V8	3,030 lb	CL2P 27

1968

Measure	Value	Applies to
Wheelbase	111 in	all Darts
Overall length	195.4 in	as printed
Overall width	69.7 in	as printed
Tires, GT/GTS with heavy-duty suspension	D70 x 14 or E70 x 14	GT/GTS
Shipping weight, GTS hardtop	3,038 lb	LS23
Shipping weight, GTS convertible	3,310 lb	LS27
Standard axle ratio, GTS 340 (automatic or 4-speed)	3.23 :1	GTS 340; 3.55 and 3.91 only with Sure-Grip

1969

Measure	Value	Applies to
Wheelbase	111 in	all Darts
Overall length	195.4 in	as printed
Tires, GTS	E70 x 14 red line	GTS
Shipping weight, Swinger 340	3,097 lb	LL23 Swinger 340
Shipping weight, GTS hardtop / convertible	3,105 / 3,210 lb	LS23 / LS27

1970

Measure	Value	Applies to
Wheelbase	111 in	Dart
Overall length	196.2 in	Dart
Overall width	69.7 in	Dart
Overall height	53 in	2-door hardtop
Tires	E70 x 14	Swinger 340
Rear axle ratio	3.23:1 standard	Swinger 340
Shipping weight, Swinger 340	3,179 lb	LL23 Swinger 340

1971

Measure	Value	Applies to
Shipping weight, Demon 340	3,165 lb	LM29

1972

Measure	Value	Applies to
Shipping weight, Demon 340	3,125 lb	LM29
Wheelbase / length / width	108.0 / 192.5 / 71.7 in	Demon
Standard tyres, Dart Demon 340	E70 x 14 bias-belted	Dart Demon 340
Standard axle ratio, 340 (TorqueFlite or manual)	3.23 :1	Dart Demon 340; 3.55 optional with Sure Grip
Compression ratio, 340 4-bbl	8.5:1	Dart Demon 340

1973

Measure	Value	Applies to
Shipping weight, Dart Sport 340	3,205 lb	LM29

1974

Measure	Value	Applies to
Shipping weight, Dart Sport 360	3,330 lb	LM29
Standard axle ratio, 360 V8 (3- or 4-speed manual)	3.21 :1	Dart 360 Sport; 3.55 optional
Standard axle ratio, 360 V8 with TorqueFlite	2.94 :1	Dart 360 Sport; 3.21 and 3.55 optional
Standard tyres	E70 x 14 bias-belted BSW	Dart 360 Sport
Wheels	15 x 5.5	Dart 360 Sport (as printed)
Front brakes	power disc	Dart 360 Sport
Overall length	198.2 in	Dart Sport
Wheelbase	108 in	Dart Sport

1975

Measure	Value	Applies to
Shipping weight, Dart 360 Sport	3,335 lb	LM29
Standard axle ratio, 360 V8 with TorqueFlite	2.94 :1	Dart 360 Sport; 3.21 (and 3.21 Sure Grip) optional
Standard tyres	E70 x 14 BSW	Dart 360 Sport
Wheels	14 x 5.5	Dart 360 Sport
Front brakes	power disc	Dart 360 Sport
Fuel tank	16 US gal	Dart

1976

Measure	Value	Applies to
Shipping weight, Dart Sport	2,990 lb	LL29

Each year's heading links to that model year's full fact sheet. Specification labels are carried as recorded and not normalized across years, so the same measure may be worded differently from one year to the next.
